Description
Article no.: 190Anima

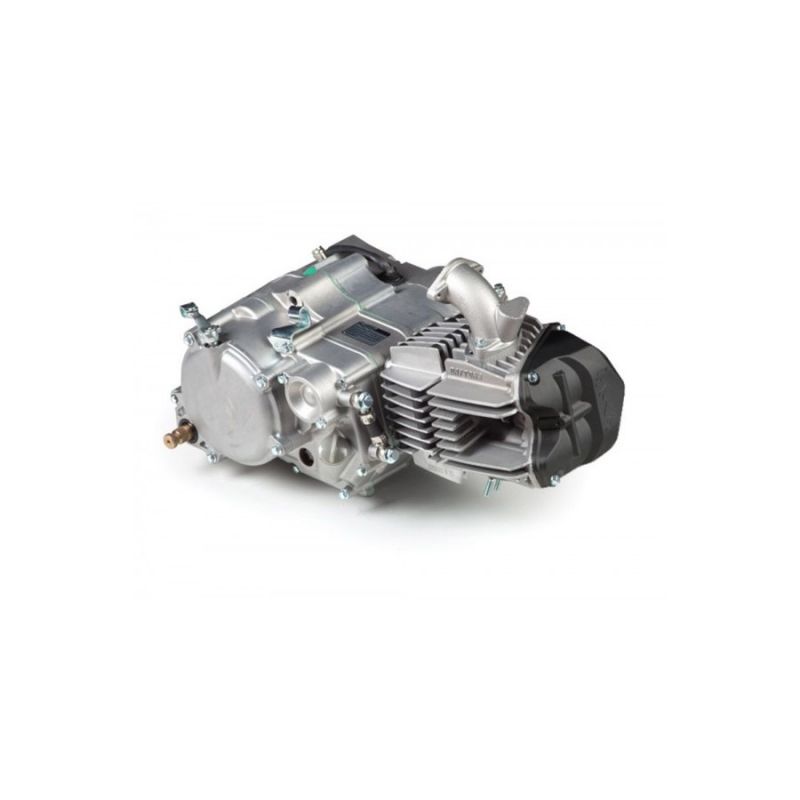

Engine Daytona Anima 190cc FS5 with automatic decompressor.
25hp. Honda / Skyteam engine fixation mountings.
FD5 lastest version with a 5 speed gearbox and 12v 50 ignition for light/battery
ENGINE
Engine Type :
Air Cooled 4-Stroke SOHC 4 valves
Displacement : 187.2cc
Bore x Stroke : 62.0 x 62 mm
Starting : Kick (Primary Kick Type)
with Decompression System
Lubrication System : Wet Sump
Clutch Type : Wet,Multi-plate 6-disc
Valve size in : 24.5mm x 2
ex : 21.0mm x 2
Cam Chain : 94 Link Silent Chain
Primary Reduction Ratio : 67 / 18 (3.72)
Transmission Type: 5-Speed
Gear Ratio :
1st : 14 // 34 th = Ratio 2.43
2nd : 15 // 26 th = 1.73
3rd : 18 // 24 th = 1.33
4th : 22 // 24 th = 1.09
5th : 24 // 22 th = 0.91
Gear Shift Pattern : 1-N-2-3-4-5
ELECTRICAL
Ignition System : AC-CDI
Generator System : AC Magneto
Spark Plug : ER9EH
Accessories
with Aluminum Intake Manifold
Ignition Coil
Wiring loom for the CDI
Not included :
Carburator
Rubber Manifold
Kickstarter
Gearshifter
Front sprocket
